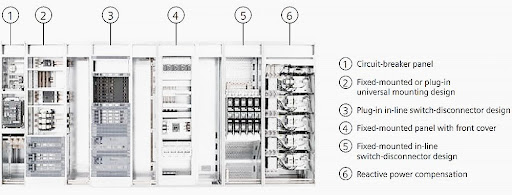

Low voltage switchgear

What is low-voltage metal-enclosed switchgear? Low-voltage metal-enclosed switchgear is a three-phase power distribution product designed to safely, efficiently and reliably supply electric power at voltages up to 1,000 volts and current up to 6,000 amps.

What is LV and HV switchgear?

HV (high voltage) and LV (low voltage) are the two basic categories (low voltage). HV type is used to power motors and electrical equipment that operate on more than 1000 volts AC, whereas LV type is used to power electrical devices running on less than 1,000 volts AC.

What are the different types of switchgear?

The three categories are:

High Voltage (H.V.) Switchgear.
Medium Voltage (MV) Switchgear.
Low Voltage (LV) Switchgear.

What is LT switchgear?

The term LT Switchgear includes low voltage Circuit Breakers, Switches, off load electrical isolators, HRC fuses, Earth Leakage Circuit Breaker, Miniature Circuit Breakers (MCB) and Molded Case Circuit Breakers (MCCB) etc i.e. all the accessories required to protect the LV system.

What is the purpose of switchgear?

Electrical switchgear refers to a centralized collection of circuit breakers, fuses and switches (circuit protection devices) that function to protect, control and isolate electrical equipment. The circuit protection devices are mounted in metal structures.

What are the major components of a low voltage switchgear?

LV switchgear components include circuit breakers, changeover switches, fuses, overload relays, and disconnectors.

What is LV HV and MV?

Definitions vary somewhat but a general guide to the voltage categories are as follows: Low Voltage (LV): up to 1000V. Medium Voltage (MV): between 1000 V and 45 kV. High Voltage (HV): between 45 kV and 230 kV. Extra High Voltage (EHV): from 230 kV and above.

What voltage is low voltage?

A common rule of thumb is that anything below 600 volts is considered low voltage.

What is MV and LV panel?

Thus, there are three main categories of switchgear as follows: High voltage (H.V.) switchgear. Medium voltage (MV) switchgear. Low voltage (LV) switchgear.

What is the most common type of switchgear?

Most primary switchboards are of the metal-clad type. It is now common policy for such metal-clad switchgear to be housed in appropriate weatherproofed buildings.

How do I select switchgear?

Switchgear selection

Satisfactory performance.
Compatibility among the individual items; from the rated current In to the fault-level rating Icu.
Compatibility with upstream switchgear or taking into account its contribution.

What is difference between switchgear and circuit breaker?

Switchgear contains fuses, switches, and other power conductors. However, circuit breakers are the most common component found in switchgear. During an electrical fault, a circuit breaker will sense the anomaly and interrupt the power flow, effectively limiting damage to the system.

What is the difference between HT and LT?

A low tension line simply means low voltage and a high tension line simply means high voltage. If you have a three-phase connection you receive an LT supply of 400 volts. For a single connection, you will receive 230 volts. If you require bulk power to run your system you will be needing High tension or HT supply.

Why do we need a LT switch?

LT Panels are used with low tension cables to obtain power from the generator or transformer and distribute electricity to various electrical devices and distribution boards. LT panels are designed to function at lower voltages (up to 690 Volts) with low insulation levels.

What is 11KV switchgear?

The 11KV Switchgear panels shall comprise of 11KV Vacuum Type circuit breakers, control relay panel, instrument panel and instrument transformers (complete in all respect) etc., suitable for indoor use.

What is the difference between switchboard and switchgear?

One of the main differences between switchgear and switchboards are their hardware component variations. While switchgear is composed of switching devices designed to turn the power on or off, switchboards are panels equipped with devices ready to reroute power as needed.

Where are switchgears located?

switchgear power systems and substations are most commonly located on both the high and low voltage sides of power transformers. When the switchgear is located on the “low voltage side” of the transformers, they are located in what is referred to as a Power Distribution Center.

What is primary and secondary switchgear?

The choice of type is related to its use: the primary distribution switchgear is used in applications where high reliability and continuity of service is fundamental (i.e.: primary substations, steelwork plants, refinery plants, power centers), while the secondary distribution switchgear is used in applications which

What is the working voltage of LT switch?

The LT (low tension) switchgear is used for circuits below rated voltage 1000 V A.C. or 1200 volts D.C.

What defines low voltage?

Low voltage systems are comprised of electrical equipment that uses 50 volts (V) of electricity or less. Common low voltages include 48 V, 24 V, and 12 V. Residential examples of low voltage systems include doorbells, garage door openers, home security sensors, thermostats, and landscape lighting.
